Inside Our Factory --
Vertical Manufacturing
in Xiamen
From raw timber, PVC extrusion and aluminum processing to coating, cutting and assembly -- the full production chain under one roof. No sub-contracted steps, no third-party dependency on core materials.
Floor Area
Employees
Paths
Per Year

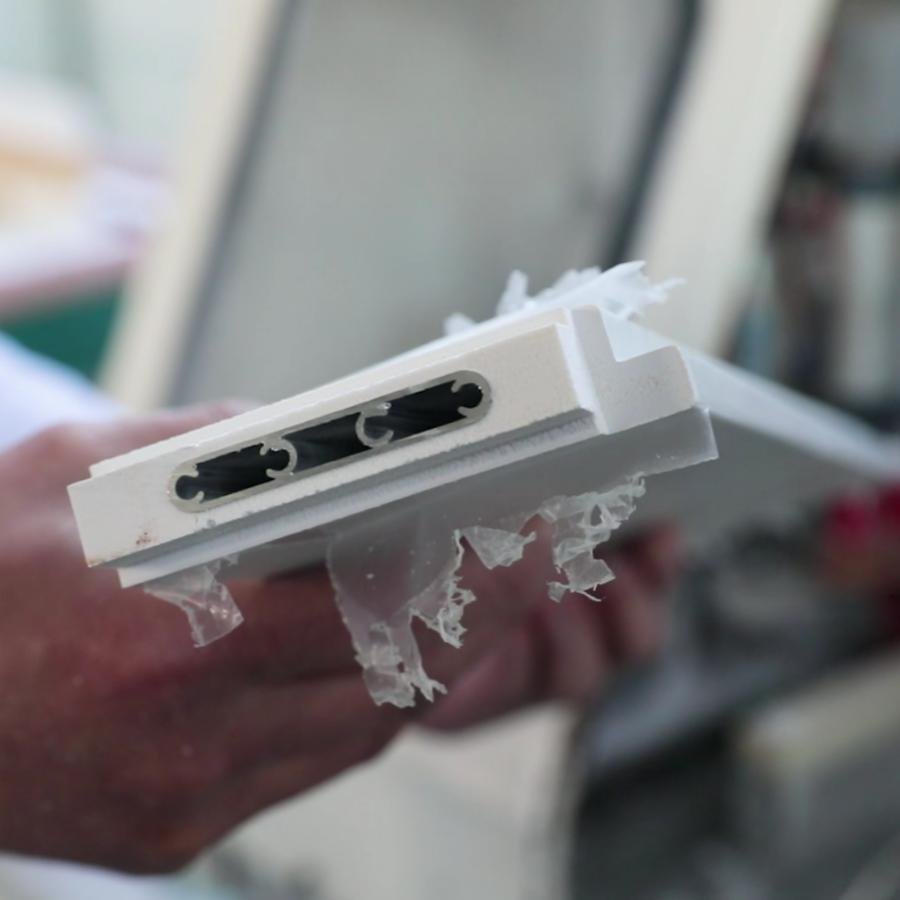

PVC Material Path
PVC extrusion follows a fully in-house production path -- from resin compounding through to final inspection -- with no dependency on third-party profile suppliers.
Virgin PVC pellets blended in-house; wall thickness & compound formulation controlled internally
50+ dedicated extrusion lines; 200+ proprietary die profiles for louvres, frames and rails
CNC cross-cut to spec; custom louvre widths 47-130 mm; arched and shaped profiles processed at this stage

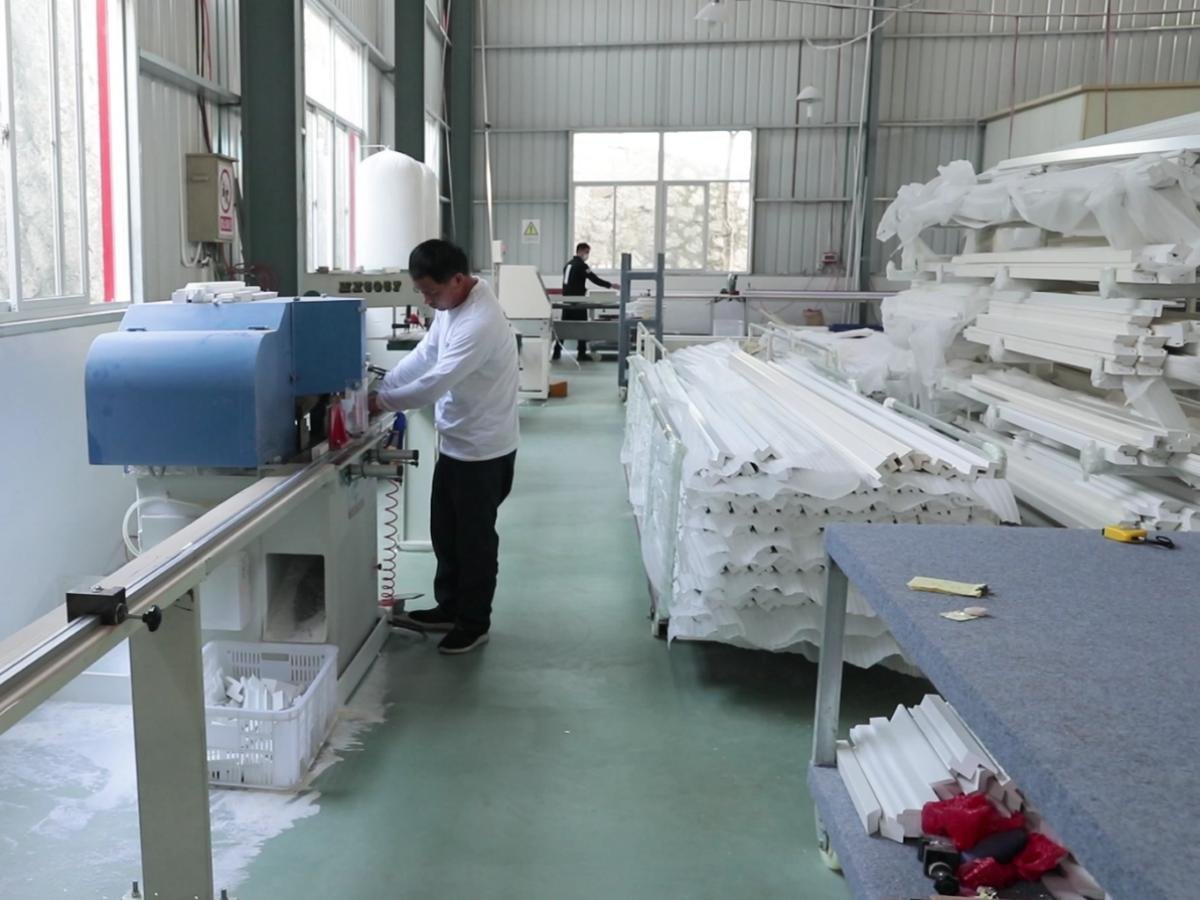

80+ automated assembly workstations; tilt rod, staple-free tenon joints, tension calibration
FQC full-panel check; UV anti-yellowing test; foam-insert export carton
Process note: No colour coating is applied to standard PVC louvres -- colour stability is achieved through compound pigmentation at the extrusion stage. This eliminates peeling or surface delamination over the product lifetime.
Production Process
Aluminum Material Path
Aluminum 6063-T5 processing -- from billet extrusion through powder coating to final assembly -- handled entirely on-site with in-house die tooling and finishing capability.
Specification note: Aluminum 6063-T5 is recommended for coastal, high-humidity or marine environments where solid wood or PVC may not perform optimally. Custom colour matching available; minimum run quantities apply.
Wood Material Path
Solid wood machining spans nine production stages -- from timber grading and kiln drying through CNC shaping, multi-coat finishing and final assembly -- all managed under one roof.
-
Timber GradingBasswood, paulownia, ash and FSC® pine inspected at intake; moisture content checked before processing
-
Rough MillingGang rip saws reduce blanks to louvre and frame blanks; defect zones removed at this stage
-
Kiln Drying4+ drying kilns; target moisture content 8-12% to reduce in-service warping risk
-

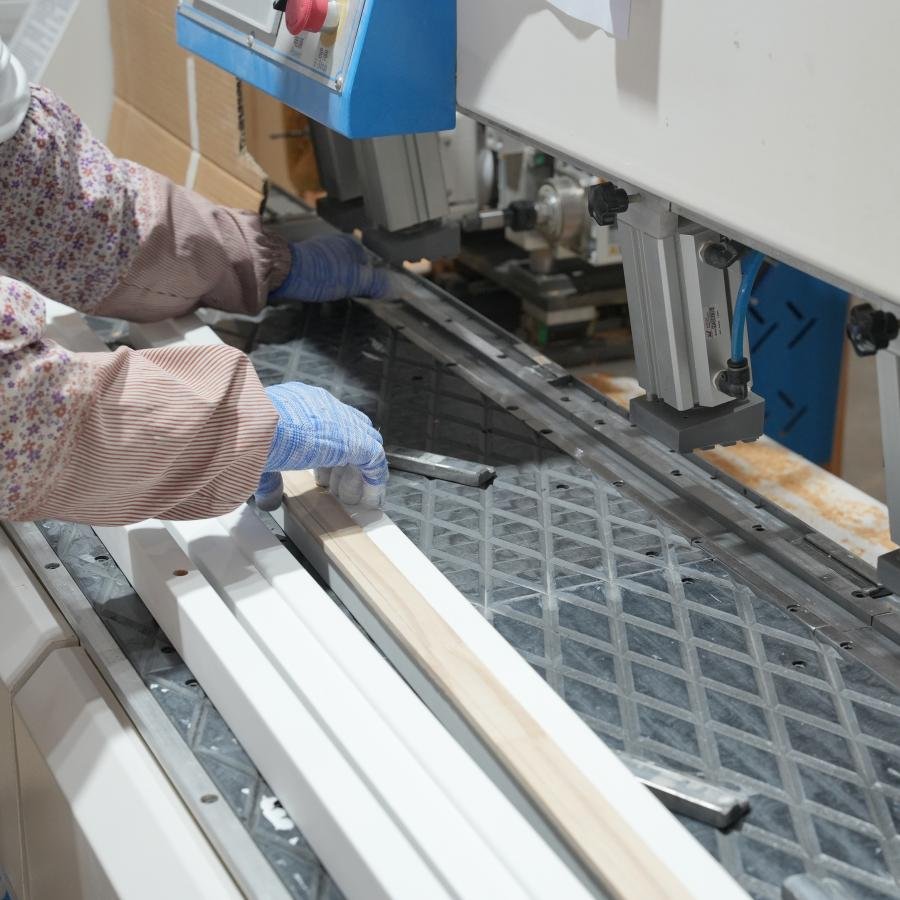

CNC Profile Shaping20+ CNC machining centres; louvre radius, mortise and tenon, arch and shaped frames in a single setup
-
Sanding6+ wide-belt sanders; multi-grit sequence from 80 to 220; open-pore surface prepared for coating
-
Coating & Staining3 automated water-based coating lines; primer + sealer + topcoat sequence; UV anti-yellowing test on every batch
-
Cutting & DrillingFinal cross-cut to order dimensions; tilt rod holes, staple slots and hinge mortises punched or bored to spec
-
AssemblyPanel build-up at dedicated workstations; louvre tension, hinge alignment and frame squareness verified
-
Inspection & PackingFQC full-unit check; humidity cycling test; foam-cornered export carton with bilingual labelling
Humidity advisory: Solid wood shutters are not recommended for rooms with sustained ambient humidity above 70% (e.g. steam-heavy bathrooms or laundries). PVC or aluminum are the appropriate specification for those environments.
Numbers Behind
the Production Line
Equipment figures reflect the installed base as of the current production year. Capacity expansions are planned incrementally to match order volume growth.
PVC Extrusion
CNC Wood Machining
Automated Coating
FQC & Packing
