Wood Plantation
Shutters -- CNC Machined
Factory Direct
Four timber species -- ash, basswood, pine and paulownia -- CNC-machined in-house across 20+ machining centres. Standard and custom shapes available, with FSC® chain-of-custody documentation for markets that require it. B2B supply to wholesalers, brands and project builders across the US, Canada, Australia, New Zealand, UK and Ireland.
Four Species.
Each With a Purpose.
Timber selection is not cosmetic -- density, grain structure and moisture behaviour directly affect long-term performance in your target market's climate. Here is how we approach species selection for wholesale and brand partners.
Need a non-wood alternative? Compare materials across the full plantation shutter range on the Plantation Shutters overview page.
Wood Shutter
Production Process
From raw timber selection through to finished, packaged product -- every stage of our wood shutter manufacturing is controlled in-house. The six steps below reflect how we maintain consistency across 280,000 plantation shutter sets per year.

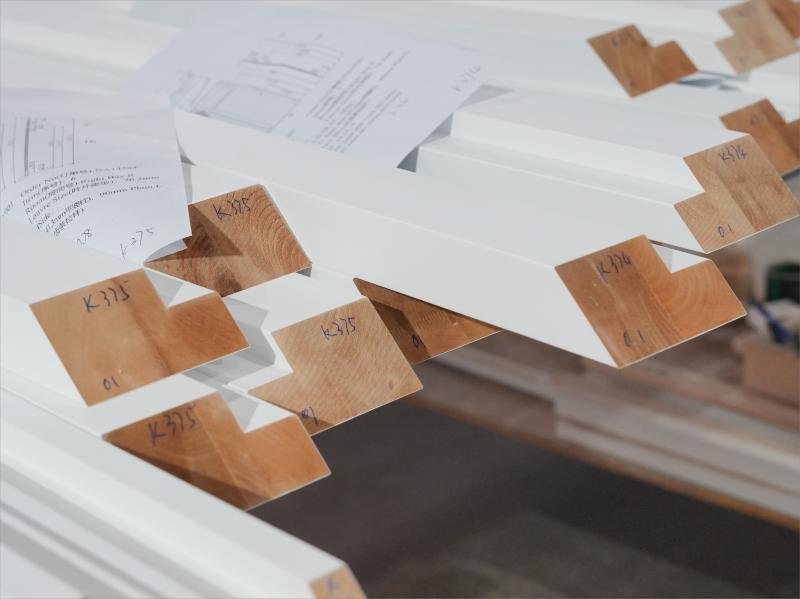

Wood Selection
Incoming timber -- basswood, paulownia, ash, and FSC® certified pine -- is evaluated for moisture content, grain density, and dimensional stability before acceptance. Only material meeting our incoming quality control (IQC) criteria enters production. Species selection is matched to the end application and target market requirements, with FSC® chain-of-custody documentation available for markets that require it.

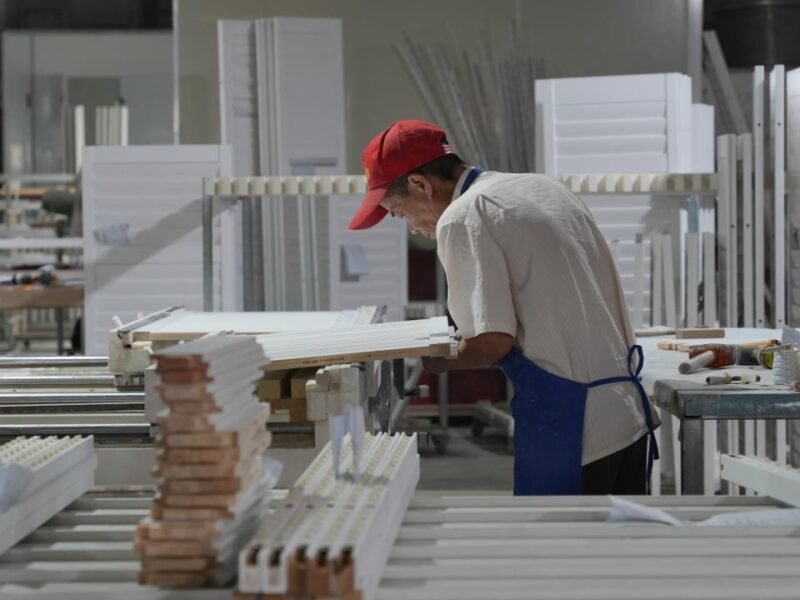

Cutting & Milling
Conditioned timber moves to our 20+ CNC machining centres, where stiles, rails, louvres and frame components are profiled to dimensional tolerance. Custom shapes -- arch, circular, triangular -- are machined using the same equipment, not outsourced. Finger-jointing of frame components is handled at this stage, producing a structurally stable joint whose bond strength exceeds the surrounding timber fibre.

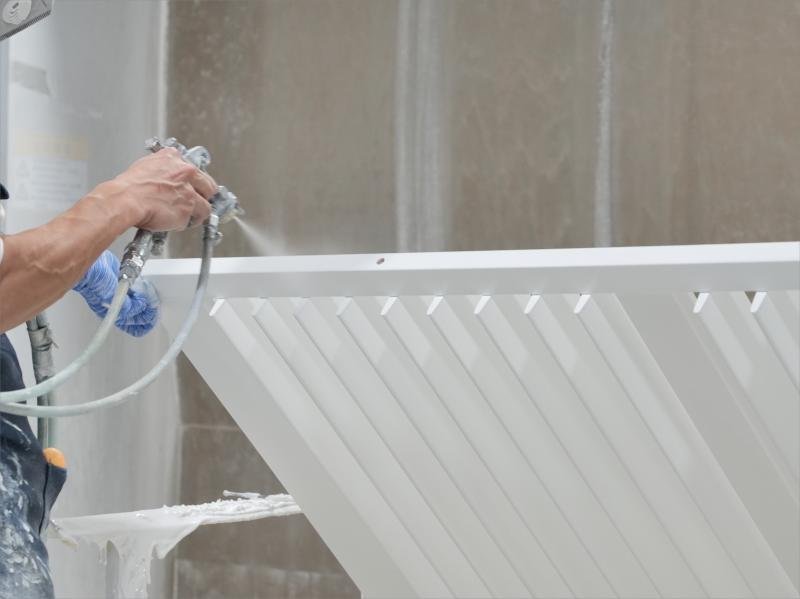

Sanding & Finishing
Components are progressively sanded before entering our three automated coating lines. Water-based primer is applied to all surfaces -- including routed cavities and back faces -- sealing the wood against moisture exchange during transit and post-installation. Topcoats are applied in controlled conditions on continuous automated lines, with UV anti-yellowing cycles run on each batch to validate colour stability over time.

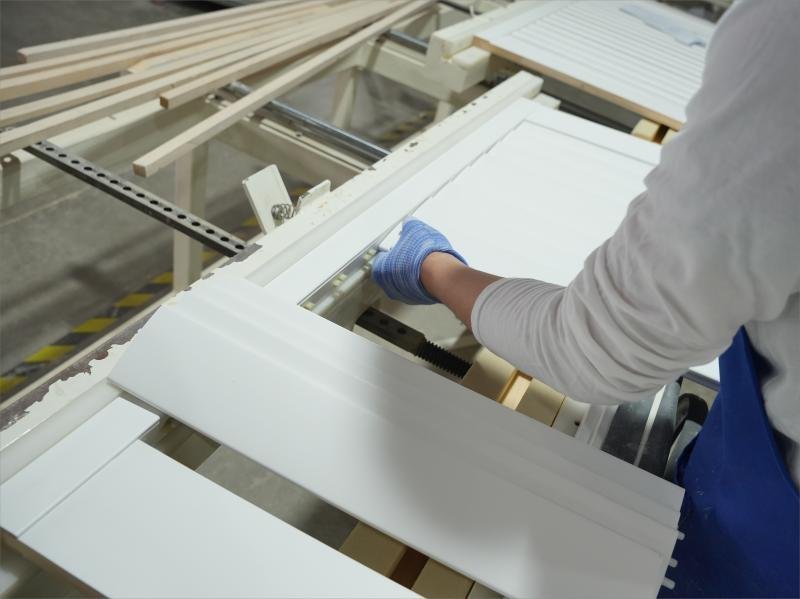

Assembly
Coated components are assembled at 80+ automated workstations. Hinge specification is matched to the timber species, louvre width, panel height, and total panel count per frame -- a denser species such as ash requires a different hinge grade than paulownia of the same nominal dimension. Louvre tensioning, tilt-rod alignment, and hardware torque values are set to specification at assembly, not adjusted post-installation.

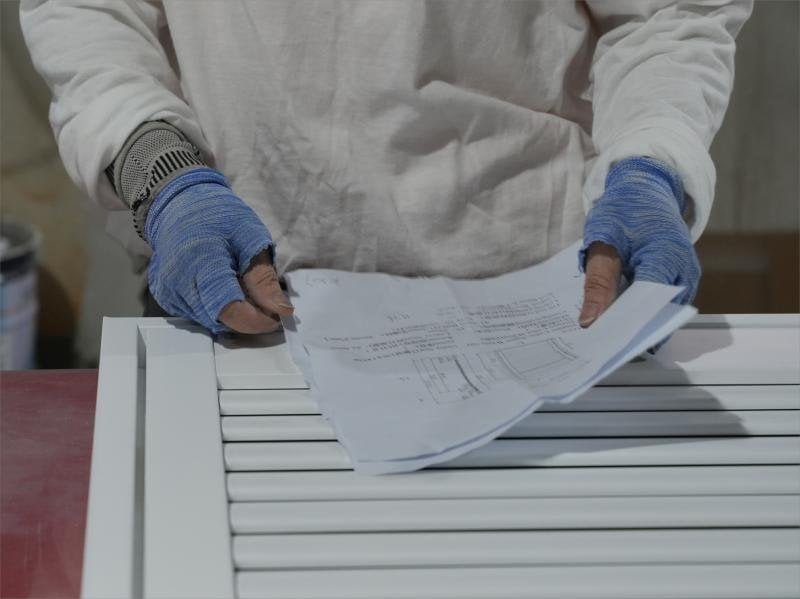

Quality Testing
Finished shutter panels pass through a three-stage quality control sequence: IQC (incoming material), IPQC (in-process inspection at each production stage), and FQC (final product inspection on 100% of units -- not a sampled subset). UV anti-yellowing tests, humidity cycling, and structural load tests on hinges and louvre pivots are conducted per batch. Non-conforming units are quarantined and reworked before any packaging authorisation is issued.

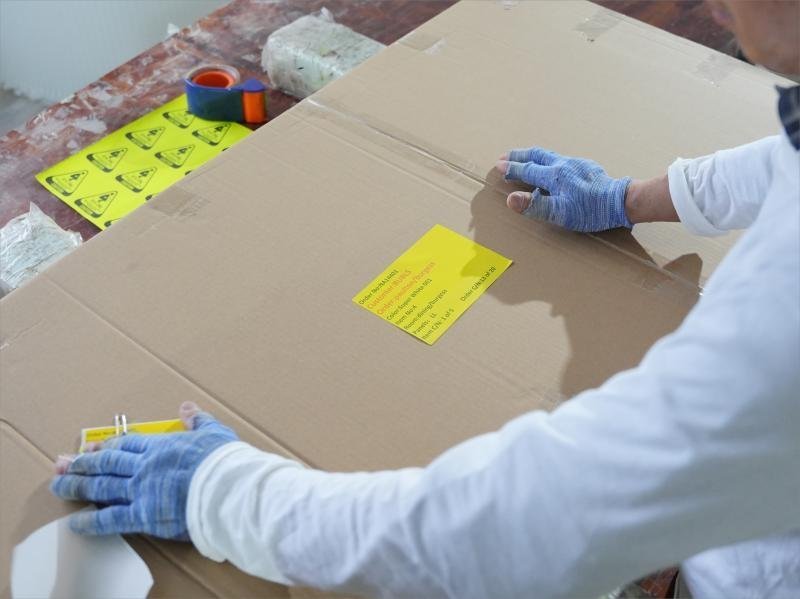

Packaging
Panels are individually wrapped in protective foam and sleeved before carton assembly. Cartons are designed for standard FCL container loading patterns and tested against compression and drop scenarios representative of international sea freight. OEM and private-label packaging -- including branded outer cartons, custom inserts, and installation guides -- is produced in-house and applied at this stage. Packaging compression tests are conducted per batch, not sampled from production runs.
Where Wood
Works -- and
Where It Doesn't.
We would rather tell you the honest answer now than have your customers report field failures later. Wood plantation shutters are excellent products in the right environment. They are the wrong product in others.

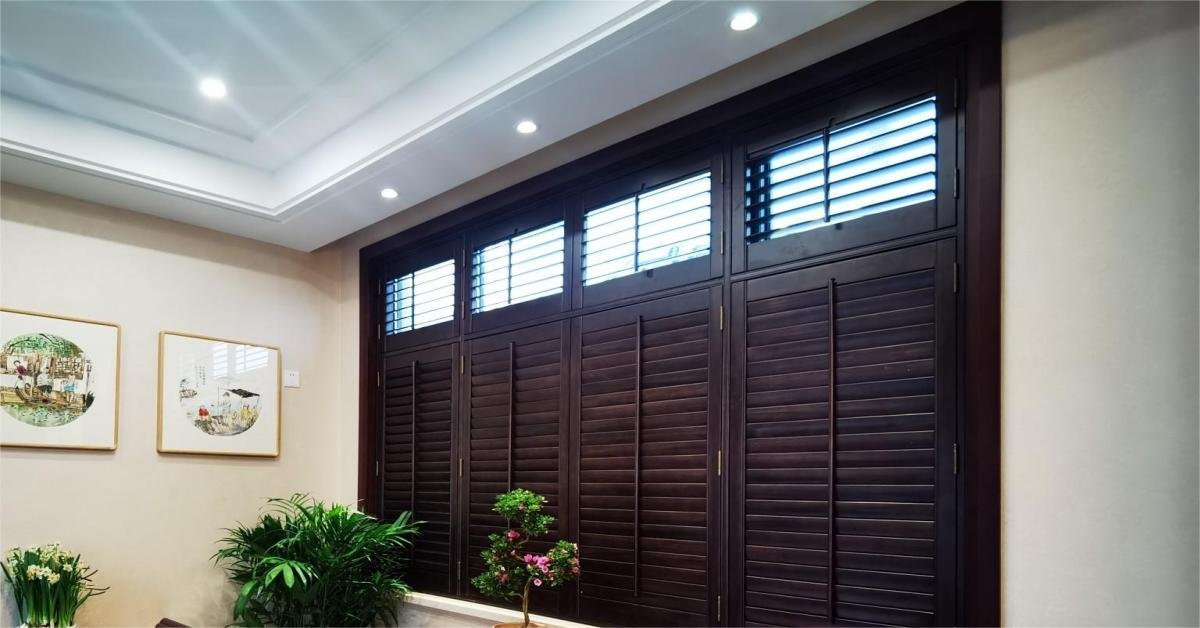

Recommended Environments
- Living rooms, bedrooms, dining rooms -- standard conditioned interior environments with stable relative humidity are ideal for all four timber species.
- Home offices and studies -- typically low humidity variation, low direct moisture exposure. Wood performs predictably.
- Commercial interiors with HVAC control -- offices, retail, hospitality spaces where climate is actively managed.
- Dry or temperate climate markets -- the US Southwest, inland Australia, and similar regions where ambient humidity is consistently moderate to low.
High-Humidity Environments -- Not Recommended
Wood plantation shutters are not suitable for rooms with sustained relative humidity above approximately 70%, or for spaces with regular direct moisture exposure. This includes steam-heavy bathrooms, indoor pools, laundry rooms, and coastal properties where windows are frequently opened in humid salt-air conditions.
In these environments, timber will absorb and release moisture cyclically. Over time, this causes louvres to stiffen, panels to bow, and paint to crack at joints -- regardless of finish quality. This is a material physics issue, not a manufacturing defect.
For these applications, we recommend considering our PVC or aluminium plantation shutter series instead:
Buyer Checklist -- Is Wood Right for This Order?
- Confirm the target installation rooms (living areas vs. bathrooms vs. outdoor)
- Confirm the climate zone -- coastal humid vs. dry inland vs. temperate
- Check whether end-retailer or project spec requires FSC® chain-of-custody documentation
- Confirm louvre width requirement -- wider louvres add panel weight and affect hinge specification
- Confirm whether custom shapes (arch, circle, triangle) are required -- these are standard, not premium-priced
- Confirm paint colour specification -- physical colour samples available on request before committing to large-run colours
FSC® Certified Pine -- Compliance Documentation Available
For buyers supplying retail channels in the EU, UK, Australia, or markets where responsible timber sourcing documentation is required by end-retailers or project specifications -- our FSC® certified pine series provides chain-of-custody traceability from certified forest to finished product. This is not a marketing claim; it is a documented supply chain process.
If your target market or retail partner requires FSC® documentation, confirm this at the enquiry stage so we can ensure the correct timber batch and documentation package is applied to your order.
Ready to Specify
Wood Shutters
for Your Market?
Use our online configurator to set species, louvre width, dimensions, finish and custom shape requirements. Or contact our team directly if you need to discuss FSC® documentation, OEM packaging, regional exclusivity, or volume pricing.
info@goodwoodshutters.com +86 151 6071 6597 No. 551, Haicang Avenue, Haicang District, Xiamen, Fujian 361026, ChinaWood Shutters -- At a Glance
- Species Options
- Ash · Basswood · Pine (FSC®) · Paulownia
- Louvre Width Range
- 47mm - 130mm
- Custom Shapes
- Arch · Circle · Triangle · Standard
- Lead Time
- 20-30 days (FOB Xiamen)
- OEM / ODM
- Available -- custom packaging & colour
- Humidity Limitation
- Not for sustained RH > 70% -- use PVC or Aluminium
